Free of charge client application LogAn.
 |
DOWNLOAD: |
| Filename | logan_V06_20041008_81.tgz |
| Filesize | ca. 220 KB |
| Content | LogAn dated 2004/10/08; including source, documentation and samples. |
| Requires | rk*_server, XForms |
| Remarks | |
LogAn Info:
LogAn
is a small but effective tool for recording analogue values.
Required: rk*_server.
Up to 10 integer values and 64 binary signals may be displayed and recorded. Hmm, not enough ? Well, you are using rk*_server; just invoke LogAn a second, third time and so on ...
You may use LogAn to optimize your regulation algorithm. Hmm, did you ever spend your time waiting for the strange behaviour of your regulation software ? May be that these times can be automated with our LogAn...
LogAn may be used to derive your own applications from it.

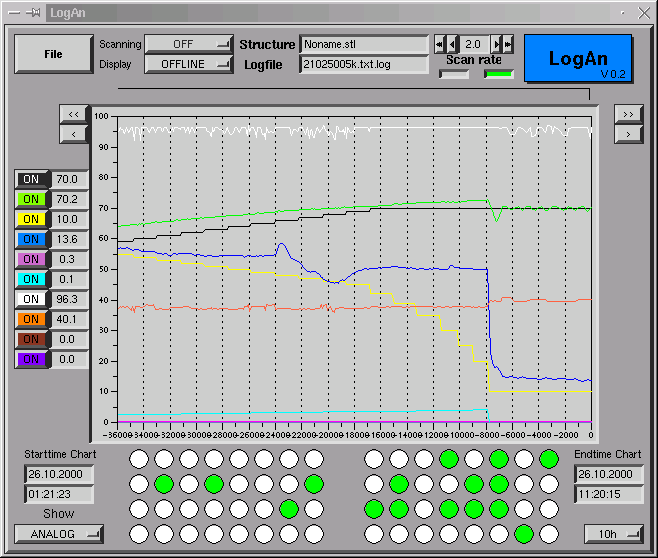

Sample screenshot LogAn:
This application is based on the grafic library
Xforms
If you do not know Xforms:
Xforms is a old, solid and slim grafic library, including a GUI designer and a good documentation.
We have used Xforms for some visualisation projects.
Xforms: Infos and Download
Installation of logan
- Extract the package into a new subdirectory.
- Copy the files "rk512_client.o" and "rk512_client.h" from the directory of the rk*-Server into
the ./src directory.
This is necessary to select the right (32 or 64 bit ) version according to the cpu. You need to compile later!
This ensures, that the correct client-part-files are used.
- Our ./src directory contains the two files "s5types_32.o" and "s5types_64.o".
Please select the file according to your processor (32/64Bit) and copy it to the file "s5types.o".
(These two files are part of our library "convert_lib", the source code is only available by buying this lib.)
- Please compile the application by executing "make clean" and "make"
LOGAN does require a running rk*_server. You may use either the DEMO version of rk*_server or the licensed version.
© 2000 ... 2023 Werner Heisch
Edition Date of this page (MET) :
2023-04-23 16:43:12
